2500mm*2500mm 5m/Min 1.6kw Glass Edge Polishing Machine

    Buy cheap 2500mm*2500mm 5m/Min 1.6kw Glass Edge Polishing Machine from wholesalers

    Buy cheap 2500mm*2500mm 5m/Min 1.6kw Glass Edge Polishing Machine from wholesalers
    • Buy cheap 2500mm*2500mm 5m/Min 1.6kw Glass Edge Polishing Machine from wholesalers

    2500mm*2500mm 5m/Min 1.6kw Glass Edge Polishing Machine

    Ask Lasest Price
    Brand Name : Lever
    Model Number : LV-S2-B
    Certification : CE
    Price :
    Payment Terms : Western Union, MoneyGram, T/T
    Supply Ability : 100 sets
    Delivery Time : 30 days
    • Product Details
    • Company Profile

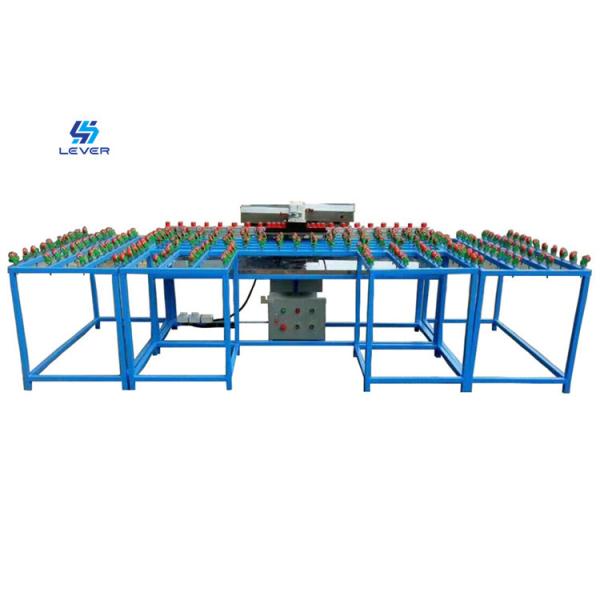

    2500mm*2500mm 5m/Min 1.6kw Glass Edge Polishing Machine

    glass four edges grinding machines Fast glass Polishing chambering milling

    Product Description
    1. Machine Application
    Four-side grinding type simple and fast chamfering and removing film integrated machine. Fast edging machine: It can replace four-side grinding, the artifact of tempering plants, hollow plants, and glass factories. The edging speed is more than three times that of the straight edge machine, and the power is the straight edge machine. One-tenth, the edging effect is the same as the four-side grind. It has a small footprint, basically no maintenance, low price, one-person operation, easy to learn, easy to use, easy to use, save money, save labor, save electricity... high-end configuration, Imported bearings, diamond resin grinding wheels, waterproof universal wheels, standard steel welding, replacing aluminum materials that are easy to deform, stainless steel sinks, circulating water pumps, saving water resources.
    high speed glass edging machine, 10 seconds for one piece of glass.
    Size Information
    machine parameter
    Feeding speed
    5~15m/min
    Min.glass size:
    150mm*150mm
    Max.glass size:
    2500mm*1500mm;
    Glass thickenss
    3mm~12mm;
    Power:
    1.6kw;
    Overall size:
    2000mm*1500mm*1200mm
    Machine weight
    300kg;
    Main Features
    1) Simple structure in linear type ,easy in installation and maintation.
    2) Adopting advanced China famous brand components in pneumatic parts ,electric parts and operation parts.
    3) Two grinding heads, which can be equipped with a vajra or resin wheel, and the two wheels form an Angle.According to the principle of the four side grinding, the effect is better than the four side mill, and the speed is better than the four side milling.
    4)The casing and water tank are made of stainless steel so that the water can be recycled.
    5)The output can reach 600~800 square meters per day, simple operation efficiency is high.
