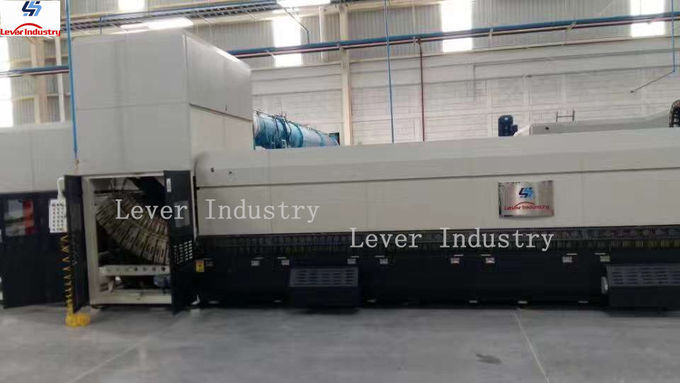

Continuous Cylindrical bedning Glass Tempering Furnace for Toyota window glass

1. Machine Application

• Continuous Bending Glass Tempering Machine is a special plant used to produce the bent tempered glass, which mainly used in the fields of side windows (sidelites) of automotives, trucks, shower room, furniture, etc. The side door of the automotive should be single curvature. Our customer produced the side doors for BMW, Audi, Toyota, Honda, Hyundai, Peugeot, etc.

2. Supply Scope:

• Loading table
• Heating section
• Single Bend tempering & quenching section
• Cooling section
• Unloading table
• Blower system
• Electrical & control system
• Spare parts as listed in appendix

3. Main Technical Features:

• The bending forming is with servo motors & servo controllers which from Yaskawa, Japan.
• Higher precision and speed arc-changing.
• Most advanced bending forming technology in China. Easy & accurate arc-adjustment. The glass type change could be finished within few minutes.
• Helix matrix structure for heating oven, which can control the temperature of each area independently.
• Full closed heating oven and high quality Insulating materials with top performance which can ensure a minimum power consumption and uniform oven temperature.
• Fault diagnosis system for the heating elements.
• PID temperature control,
• Preventive function for the wrong operation
• Synchronous and asynchronous running of each section
• Power monitoring function
• Suitable for processing clear float glass, patterned glass, reflective glass, low-e glass, etc.
• Standard for processed products: GB15763.5, GB9656, EN12150-1:2000, ECER-43, ANSIZ97.1, etc.

Luoyang Lever Industry Co., Ltd.

is a professional manufacturer of glass processing machinery.

Located in Luoyang city, the "foundation of China Float Glass Line" in the world.

Our main products include Kinds of Glass Tempering furnace, Glass Laminating Machine and related Machine Parts and material etc.

We have very experienced R&D, and installation & service engineers & technicians team.

Leverglass, offers not only the processing machinery, but also kinds of machine parts. You could choose a single machine or an entire solution, or the upgrades improvements on your current machine. The reasonable technical commercial structure ensures the high efficiency and professional competence in each stage of the clientsupplier business relations.

Leverglass, has established the entire series of technical solutions for the flat and bending tempered glass products to meet the demands in architectures, automotive, furniture, household appliances, automobiles and solar energy industries, especially, we could offer the most advanced complete automotive glass production line and highest automation flat glass laminating line.

We have cooperated with many world famous customers in the world:

Such as PPG/Vitro Group, Fuyao Group, Pilkington, Saint Gobain, XYG etc.
