Double Curvature Glass Bending Tempering machine for Automotive Backlite / rear glass

/Glass Toughening plant / Glass Toughening machine / Glass Toughening furnace

Model: LV-TB-V series

1. Machine Application

• LV-TB-V Series Double Curvature Bending Glass Tempering Plant is a special plant used to produce the curved tempered glass for automobile backlite glass, also for trucks, furniture, etc. Our customer produced the side doors for BMW, Audi, Toyota, Honda, Hyundai, Peugeot, etc.

2. Popular size for machine models:

DOUBLE BENDING GLASS TEMPERING FURNACE (MOULD BENDING / TOOLINGS BENDING)

2. Supply Scope:

• Loading table
• Heating section

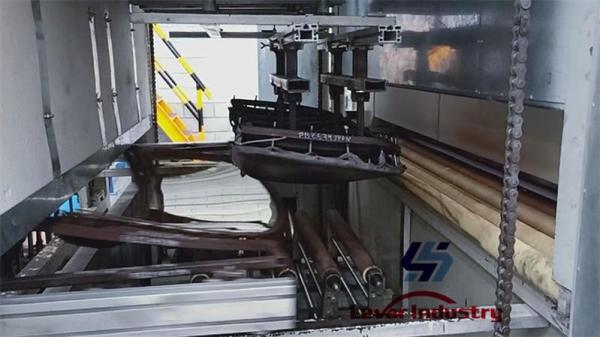

• Double bent Forming section with mould
• Quenching section
• Transmission section
• Cooling section
• Unloading table
• Blower system
• Electrical & control system
• Glass mould (1 set)

4. Machine Main Features:

• In the bending forming, for transmission of pressing mould, support mould and rollers, we use servo motors & servo controllers.
• In quenching section, for transmission of mould carrier, we use servo motors & servo controllers.
• Equipped with heating & insulating system in forming section, which could keep temperature of the forming section so that the glass is formed in high temperature.
• Easy-making and cheap moulds
• Easy & quick moulds changing-time
• Smaller roller distance in heating oven which guarantee the high quality
• Heating section has a helix matrix structure, which can control the temperature of each area independently. Reasonable design and unique structure of heating elements make a long serve life.
• The heating oven body is full closed and the Insulating materials are of high quality material with top performance which can ensure very lower energy consumption.
• Ceramic roller: World-famous brand
• Ceramic roller driving adopts seamless round belts.
• Fault diagnosis system for the heating elements.

Luoyang Lever Industry Co., Ltd.

is a professional manufacturer of glass processing machinery.

Located in Luoyang city, the "foundation of China Float Glass Line" in the world.

Our main products include Kinds of Glass Tempering furnace, Glass Laminating Machine and related Machine Parts and material etc.

We have very experienced R&D, and installation & service engineers & technicians team.

Leverglass, offers not only the processing machinery, but also kinds of machine parts. You could choose a single machine or an entire solution, or the upgrades improvements on your current machine. The reasonable technical commercial structure ensures the high efficiency and professional competence in each stage of the clientsupplier business relations.

Leverglass, has established the entire series of technical solutions for the flat and bending tempered glass products to meet the demands in architectures, automotive, furniture, household appliances, automobiles and solar energy industries, especially, we could offer the most advanced complete automotive glass production line and highest automation flat glass laminating line.

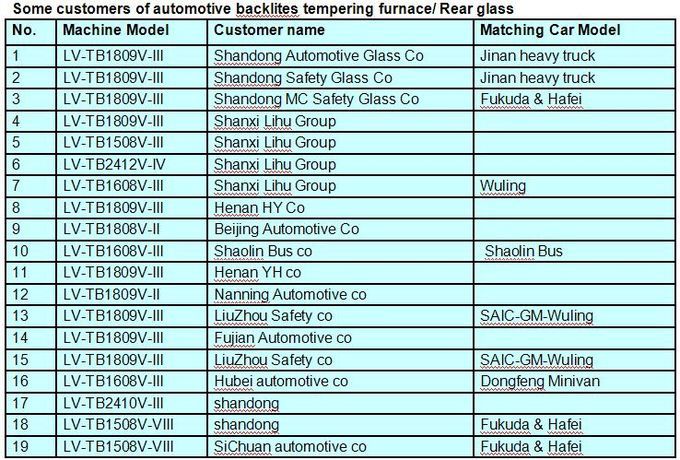

We have cooperated with many world famous customers in the world:

Such as PPG/Vitro Group, Fuyao Group, Pilkington, Saint Gobain, XYG etc.
