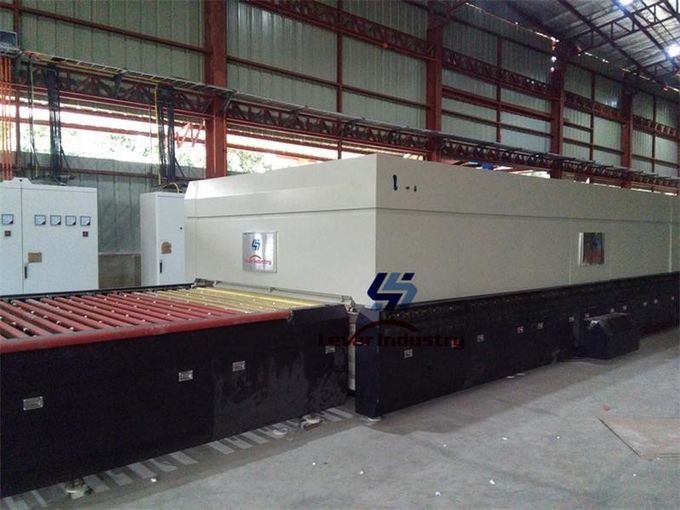

Flat and Single Curvature Bending Glass Tempering Furnace Glass Toughening Furnace

Luoyang Lever Industry Co., Ltd.
is a professional manufacturer of glass processing machinery.
Located in Luoyang city, the "foundation of China Float Glass Line" in the world.
Our main products include Kinds of Glass Tempering furnace, Glass Laminating Line etc,

We have 19 years' experience in this glass processing industry.

Video link:
https://youtu.be/0BF-2QNbcaI

1. Machine Application

• LV-TFB-L Series Bi-direction Flat & Bend glass tempering machine is a specially used to produce the flat & bent tempered glass and thermal strengthened glass, which mainly used in the fields of architecture (doors, windows), shower room, home appliance, garden fence, elevator, furniture, etc.

2. Supply Scope:

• Loading table
• Flat Tempering and quenching section
• Heating section
• Bending Glass section (Rigid shaft bending)
• Unloading table
• Blowers system

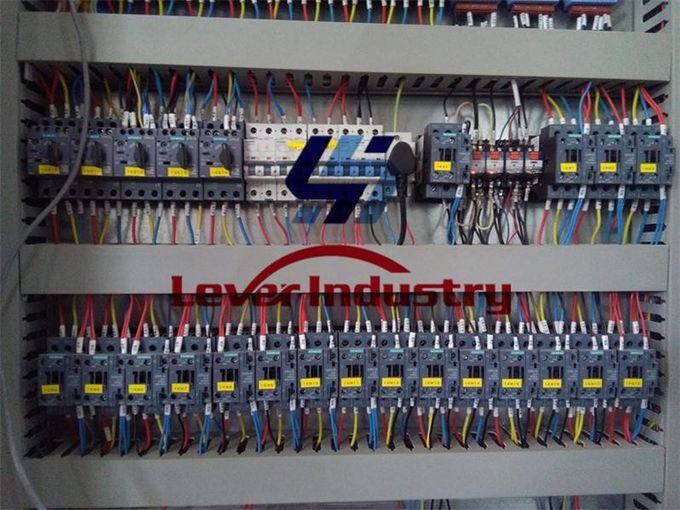

• Electrical & control system
• Spare parts as listed in appendix
• Technical documents

3. Machine Main Features:

• Heating section has a helix matrix structure, which can control the temperature of each area independently. Reasonable design and unique structure of heating elements make a long serve life.
• The heating oven body is full closed and the Insulating materials are of high quality material with top performance which can ensure very lower energy consumption.
• Fault diagnosis system for the heating elements.
• We use only two connecting communication between the thermocouples and computer, which will avoid the interruption and make the temperature-measuring more exact.
• The working condition of every thermocouple could be monitored automatically, and the warning will come out if there is any abnormal situation.
• Adopting PID for temperature control, which has the better anti-interference function and higher temperature-control precision.
• Equal three phase power consumption during automatic heating up period; avoiding phase no-equal during no-heating period automatically.
• The fine-adjustment for oven temperature could be achieved by fine-adjusting the temperature of every heating element.
• During the night, the furnace can stay at sleep mode around 500-550 degrees centigrade and preheating takes place before the start of the shift in the morning so that the furnace is ready for production
• The production process, temperature, time, air pressure, etc could be recorded. Therefore, testing production could be saved and production stability could be improved. Also, the production state in different batches could be tracked.

4. Machine Models:

Lever Industry Co have more than 19 years of experience in the Glass Processing Industry.
We are Unremitting, Just for Customer Satisfication!

Luoyang Lever Industry Co., Ltd.

is a professional manufacturer of glass processing machinery.

Located in Luoyang city, the "foundation of China Float Glass Line" in the world.

Our main products include Kinds of Glass Tempering furnace, Glass Laminating Machine and related Machine Parts and material etc.

We have very experienced R&D, and installation & service engineers & technicians team.

Leverglass, offers not only the processing machinery, but also kinds of machine parts. You could choose a single machine or an entire solution, or the upgrades improvements on your current machine. The reasonable technical commercial structure ensures the high efficiency and professional competence in each stage of the clientsupplier business relations.

Leverglass, has established the entire series of technical solutions for the flat and bending tempered glass products to meet the demands in architectures, automotive, furniture, household appliances, automobiles and solar energy industries, especially, we could offer the most advanced complete automotive glass production line and highest automation flat glass laminating line.

We have cooperated with many world famous customers in the world:

Such as PPG/Vitro Group, Fuyao Group, Pilkington, Saint Gobain, XYG etc.
