Heating elements used one Tamglass brand Glass tempering furnace /
Heaters for glass tempering furnace:

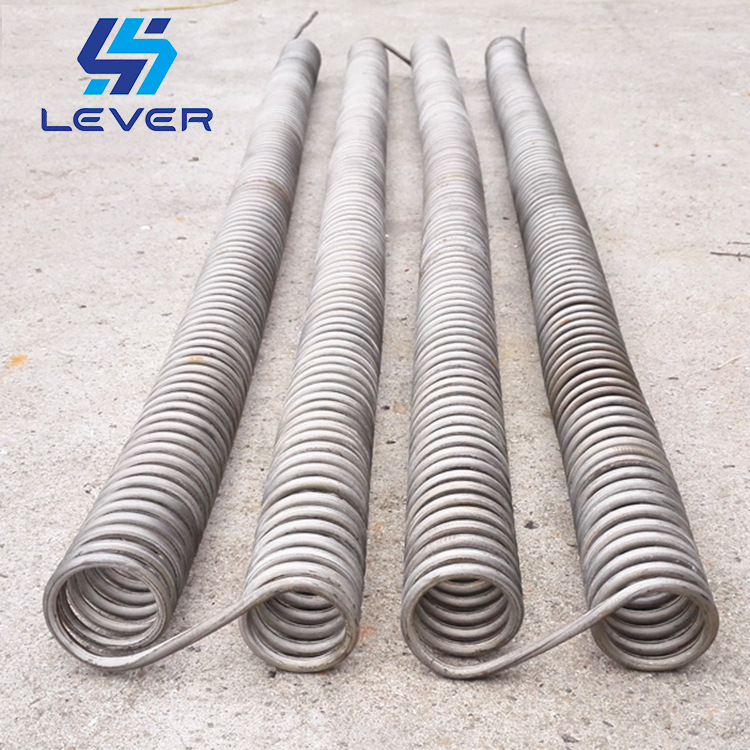

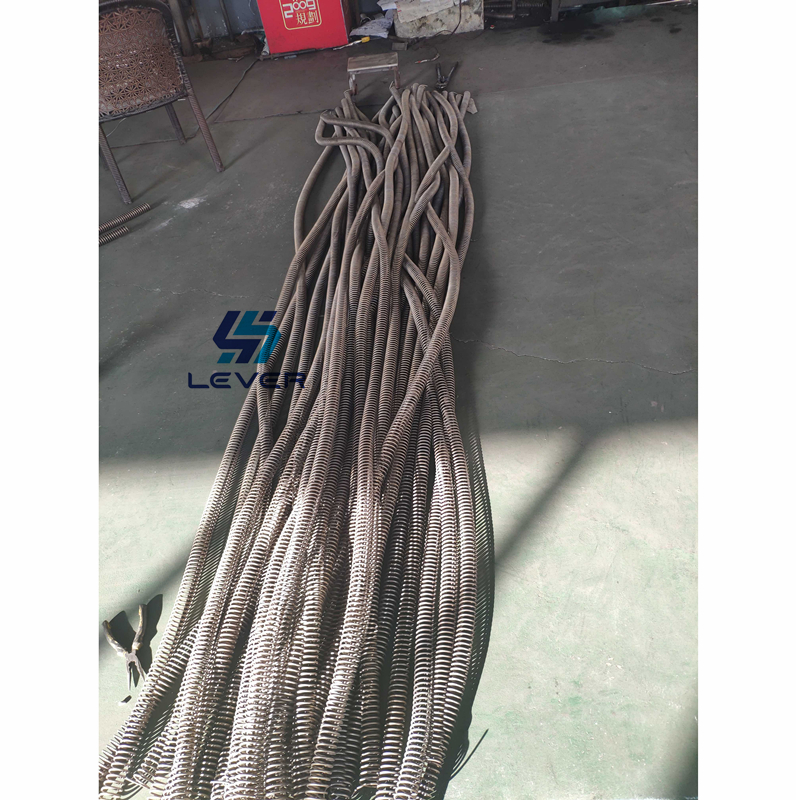

Heating Elements For Heating Chamber
| Type | Al All type as machine manufacturer |
| Material | Nickel-cadmium or as machine manufacturer |
| Resistance | 3.23,3.457,4.12,4.408,4.12,4.48,4.801,5.13(Ω)etc |
| Power | 10.08,10.3,10.8,11.78,12,14k,15(W)etc |
| Max. Temp. | 1200(℃)
|
Main properties and technical parameters of iron chromium aluminum
electric resistance alloy:
Iron-chromium-aluminum electrothermal resistance alloy has the
characteristics of high resistivity, small temperature coefficient
of resistance, and high use temperature. Good corrosion resistance
at high temperatures, especially suitable for use in sulfur and
sulfide-containing atmospheres, and low cost. It is an ideal
heating material in industrial electric furnaces, household
appliances, and far-infrared devices.
The main advantages and disadvantages of iron chromium aluminum
alloy series:
Advantages: Fe-Cr-Al electrothermal alloy has high use temperature, 1 use
temperature can reach 1400 degrees (0Cr27A17Mo2), long service
life, high surface load, good oxidation resistance, high
resistivity, low price and so on.
Disadvantages: mainly the low temperature strength, the plasticity increases with
the use of temperature, the component is easy to deform, difficult
to bend and repair.
Specification for Tamglass furnace:
HTF Super 2436, RC200, RC350 等
| 长度Length | 功率Power | 电压Voltage |
| 2940mm | 8.40KW | 380V |
| 5280mm | 12.00KW | 380V |
| 4677mm | 10.20KW | 380V |
| 5870mm | 16.40KW | 380V |
| 6470mm | 16.40KW | 380V |
| 6480mm | 19.68KW | 380V |
| 7650mm | 21.30KW | 380V |
| Ø60*60*2835mm | Auxiliary radiant tube | 380V |
| Ø60*60*5140mm | Main Radiant Tube | 380V |
| Ø60*60*5730mm | Main Radiant Tube | 380V |
| Ø60*60*6330mm | Main Radiant Tube | 380V |
| Ø60*60*7510mm | Main Radiant Tube | 380V |
