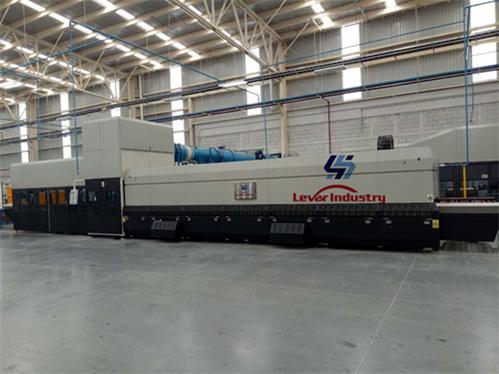

Bending Tempering machine for Automotive Side window glass with
high production and high precision, LV-TB-L Series
Video link:
https://youtu.be/0BF-2QNbcaI
| Model | Max. Loading Area | Min.Glass Size | Thickness | Min.Radius |
| (mm) | (mm) | (mm) | (mm) |
| LV-CTB1206L | 1200 x ⌒600 | 150 x 280 | 3～19 | ≧350 |
| LV-CTB1608L | 1200 x ⌒800 | 150 x 280 | 4～19 | ≧450 |
| LV-CTB2010L | 2010 x ⌒1000 | 150 x 280 | 4～19 | ≧500 |
1. Machine Application
Continuous Bending Glass Tempering Machine is a special plant used
to produce the bent tempered glass, which mainly used in the fields
of side windows (sidelites) of automotives, trucks, shower room,
furniture, etc. The side door of the automotive should be single
curvature. Our customer produced the side doors for BMW, Audi,
Toyota, Honda, Hyundai, Peugeot, etc.
2. Main Technical Features:
2.1. The bending forming is with servo motors & servo controllers
which from Yaskawa, Japan.
2.2. Higher precision and speed arc-changing.
2.3. Most advanced bending forming technology in China. Easy &
accurate arc-adjustment. The glass type change could be finished
within few minutes.
2.4. Helix matrix structure for heating oven, which can control the
temperature of each area independently.
2.5. Full closed heating oven and high quality Insulating materials
with top performance which can ensure a minimum power consumption
and uniform oven temperature.
2.6. Fault diagnosis system for the heating elements.
2.7. PID temperature control,
2.8. Preventive function for the wrong operation
2.9. Synchronous and asynchronous running of each section
2.10. Power monitoring function
2.11. Suitable for processing clear float glass, patterned glass,
reflective glass, low-e glass, etc.
2.12. Standard for processed products: GB15763.5, GB9656,
EN12150-1:2000, ECER-43, ANSIZ97.1, etc.
